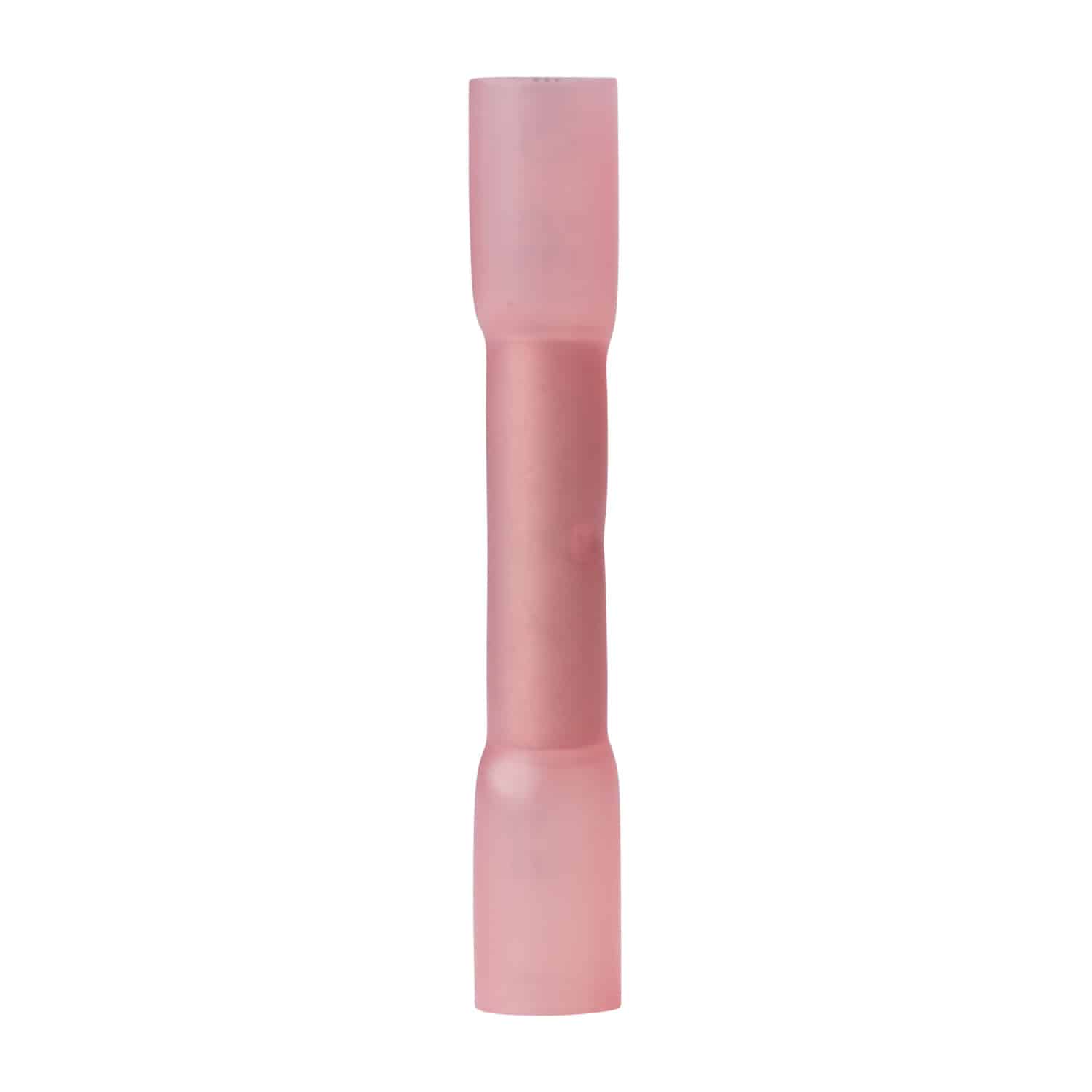

Ancor 22-18 Butt Connector Heat Shrink Red 100 Pack

$54.07

4 in stock

Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
UL Listed and CSA Recognized
Highest shrink ratio – shrinks to 1/3 original size.
Shrinks at 257° F/125° C.
Operating temperature range 40° C to 110° C.
ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
Shrinks to form a water tight seal and the ultimate vibration and strain relief.
Tinned for corrosion resistance.
Pure copper for maximum current flow.
Brazed seam for maximum strength.

Wire Range	mm	Qty/Pkg	Part No
12-10	3-5	500	309202
12-10	3-5	100	309299
16 – 14	1-2	100	309199
16 – 14	1-2	500	309102
22 – 18	0.3-0.8	500	309002
22 – 18	0.3-0.8	100	309099

SKU: WTANC309099 Categories: Electrical, Wire and Connectors
