Bep 778-anl2s Anl Fuse Holder For Up To 750amp Fuse With 2 Additional Studs
$89.38
6 in stock

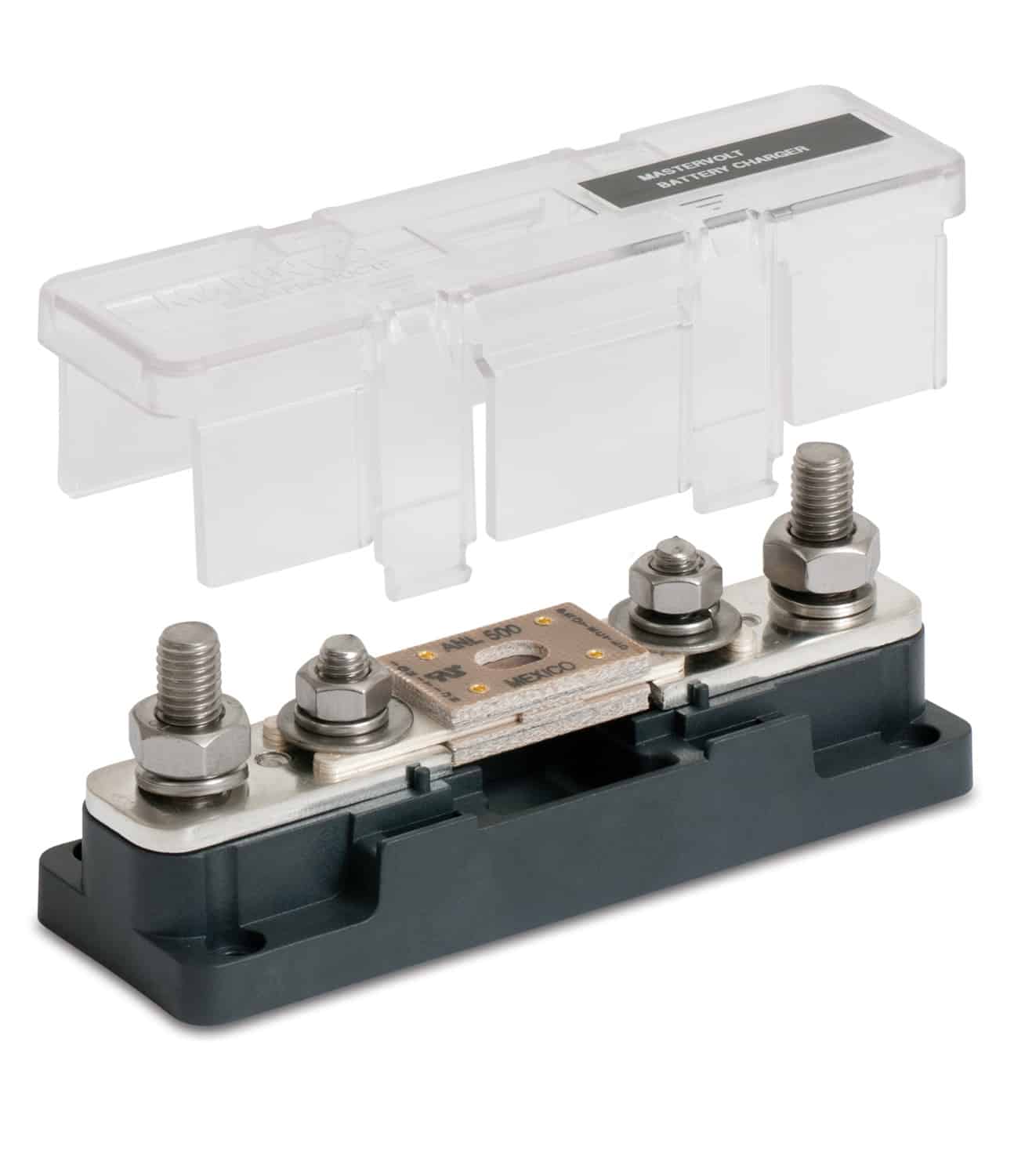

BEP 778-ANL2S 35-750A ANL Fuse Holder
Model: 778-ANL2S
- Radiused ends improve cable routing options
- for use with 5/16″” (8mm) or 3/8″” (10mm) ANL fuses
- High temperature, fibre reinforced plastic base provides strength and chemical resistance
- Clear polycarbonate cover
- Modular sizing and common interconnection height: Easily linked with other Pro Installer Busbars and Fuseholders saving installation time and space
- Compact footprints save space
- Fuse viewing "window" in cover aids visual inspection of fuse-state
These ANL fuse holders offer unparalleled circuit protection choice for both the installer and end-user.
Specifications
| CabLe connection | 10mm (3/8″”) studs |
| Fuse moutning studs | 8mm (5/16″”) |
| Fuse type | ANL or ANN |
| Amperage range | 35-750A fuse dependant |
| max voltage | 50vDC |
| Dimensions | 5.8″” x 1.9″” x 2.4″” |
| Weight | 0.40 lbs |
|---|---|
| Brand | BEP |
| UPC | 843687006787 |
| MPN | 778-ANL2S |
