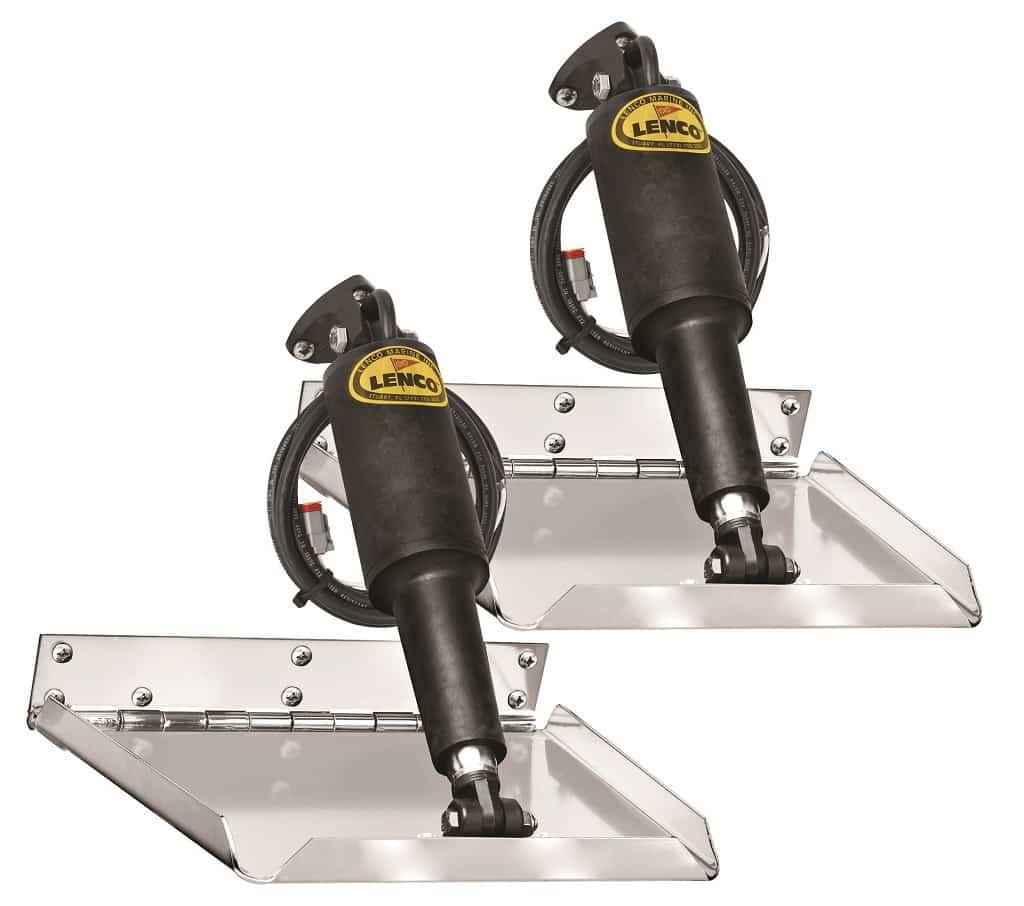

Lenco 16″” X 12″” Perfomance Trim Tab Kit – Requires Switch
Model: 15039-101
Lenco’s first series designed specifically for performance. This system comes equipped with a thicker reinforced hinge and complimented with an Electro-Polished finish for added quality and protection. Boat lengths 13’ (4 m) to 40’ (12.2 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with 1″ (2.5 cm) turned up edges and a 5 degree taper on the inside, heavy duty hinge with 1/4″ (6.4 mm) diameter hinge pin.
Specifications
| Plane Size L x W | 16″” x 12″” |
| Boat length | 20′ – 36′ |
| Hinge Height | 2″” |
| Min Transom Height | 11″” |
| Voltage | 12vDC |
| Finish | Electro-Polish |
What’s in the Box:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuators with 6′ (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses – 20’ (6.1 m) length
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
| Weight | 27.00 lbs |
|---|---|
| Brand | LENCO, Marine |
| UPC | 874847004619 |
| MPN | 15039-101 |
