Lenco LED Indicator (TWO-PIECE) Dual Kit – 12 & 24-Volt – Dual Actuator Systems

Model: 15271-001

• Simple, quick, Plug & Play installation
• Built-in retractor
• Low profile design
• 2 1/16″” hole cut-out size, overall key pad size of 2.75″” x 2.75″”
• 2.33″” clearance required from the back of the key pad’s mounting location
• 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
• Photo Eye for optimum viewing in all light conditions
• Backlit key pad for optimum viewing at night

This all NEW LED tactile switch kit for dual actuator systems has a shortened bezel for consoles which require less depth to mount. Functionality is built into the separate control box and must be mounted in a remote location.

ATTENTION: REPLACEMENT KEY PADS AND CONTROL BOXES THAT ARE FROM 2016 & PRIOR ARE NOT INTERCHANGEABLE WITH THIS SWITCH KIT.

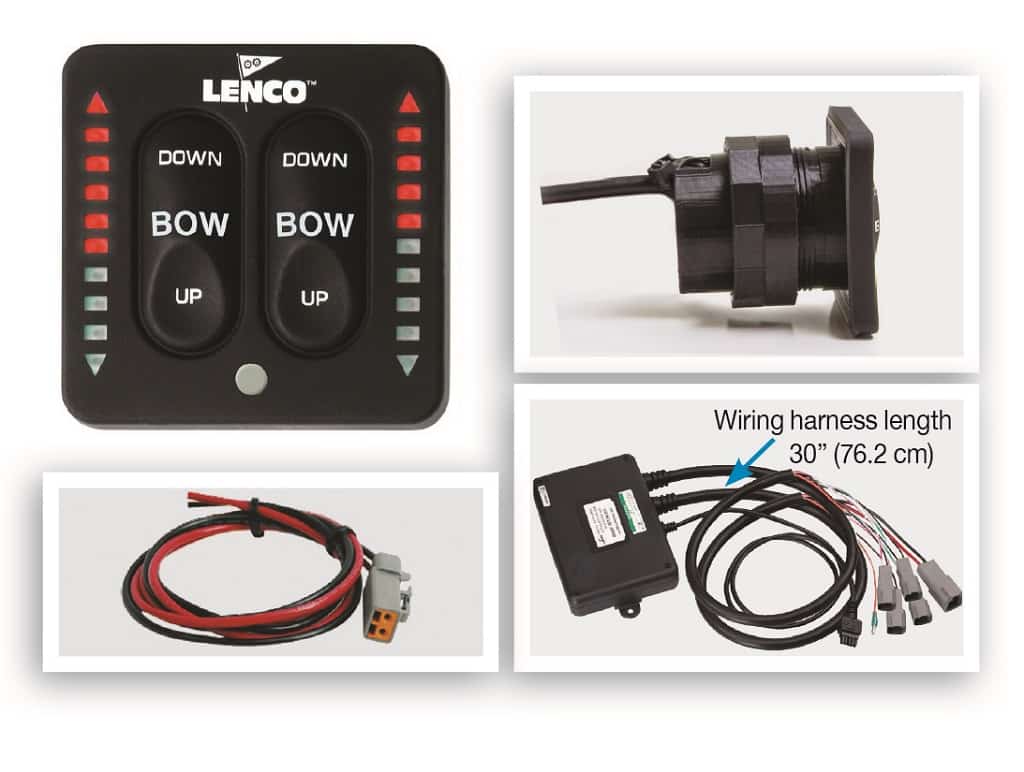

What’s in the Box:

• LED Indicator Switch
• 72″” power pigtail for control box
• Control Box for dual actuator systems
