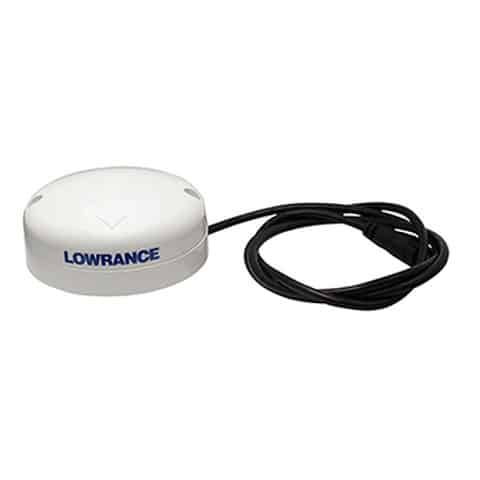

Lowrance Point-1AP GPS and Heading Antenna
Model: 000-12930-002
Point-1AP GPS and Heading antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass with accuracy and tuning specific for Lowrance Autopilots also provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds.
Specifications
Networking | |
NMEA 2000 Certified | Yes |
Connectors | NMEA 2000 Micro C |
Power | |
Power Supply (Supply Voltage) | 9v-18v |
GPS Navigation | |
GPS Receiver Channels | 32 |
Heading Accuracy | 3 degrees |
Horizontal Accuracy | 5 m |
Rate of Turn | 3 degrees |
Satellite Reacquisition | <5 seconds |
Start-up Time | <3 seconds |
Cold Start | <50 seconds |
Picth/Roll Angle | @30 degrees 1 grade error |
Technical/Environmental | |
Diameter | 90 mm (3.54in) |
Product Height | 38 mm ( 1.50in) |
What’s in the Box:
Weight | 1.50 lbs |
---|---|
Brand | Lowrance |
UPC | 9420064121168 |
MPN | 000-12930-002 |
