$79.35
271 in stock

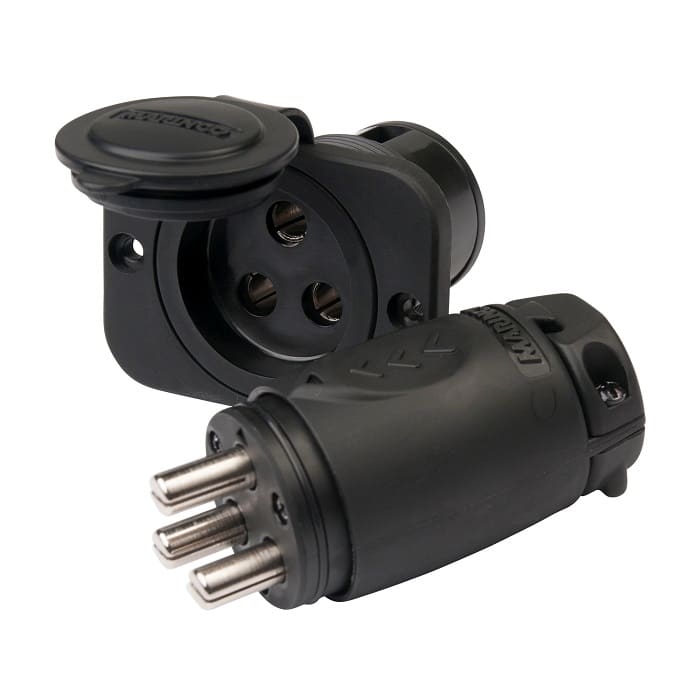

Marinco 70 amp Trolling Motor Plug and Receptacle
Model: 12VCPS3
70A plug and receptacle for modern trolling motors in a compact, waterproof footprint. The plug features an integrated strain relief and thumbprint locator to mate with the keyed receptacle.
Specifications
Plug | |
Maximum Amperage | 70A (12V and 24V) 60A (36V and 48V |
Voltage | 12V, 24V, 12/24V, 36V, 24/36V, & 48V |
Wire | 2 or 3 |
Gender | Male |
Terminals | Double Set Screw w/ferrule |
Wire Size | 8AWG and 6AWG |
Receptacle | |
Maximum Amperage | 70A (12V and 24V) 60A (36V and 48V |
VoltageVoltageVoltageVoltageVoltageVoltageVoltage | 12V, 24V, 12/24V, 36V, 24/36V, & 48V |
Wire | 2 or 3 |
Gender | Female |
Terminals | Double Set Screw w/ferrule |
Mounting Hole size | 1.75″” |
Mounting Thickness | 1″” Max |
Material Specifications | |
Body | Nylon |
Contacts | Nickle Plated Brass |
Terminal Screws | Nickle Plated Brass |
What’s in the Box:
Weight | 0.75 lbs |
---|---|
Brand | Marinco |
UPC | 093344062278 |
MPN | 12VCPS3 |
